Charging your electric vehicle at home has become increasingly popular and offers numerous benefits. But when it comes to choosing the right home EV charger, you'll need to make an important decision between a Hardwired or Plug-in model. If you opt for a Plug-in charger, one crucial factor to consider is the type of plug you'll be using.

Two commonly encountered plugs in the world of EV charging are the NEMA 6-50 and NEMA 14-50. So, what exactly sets these plugs apart, and which one should you choose for your charging needs? Let's dive in and find the perfect fit for your car!

What are NEMA 6-50 and NEMA 14-50?

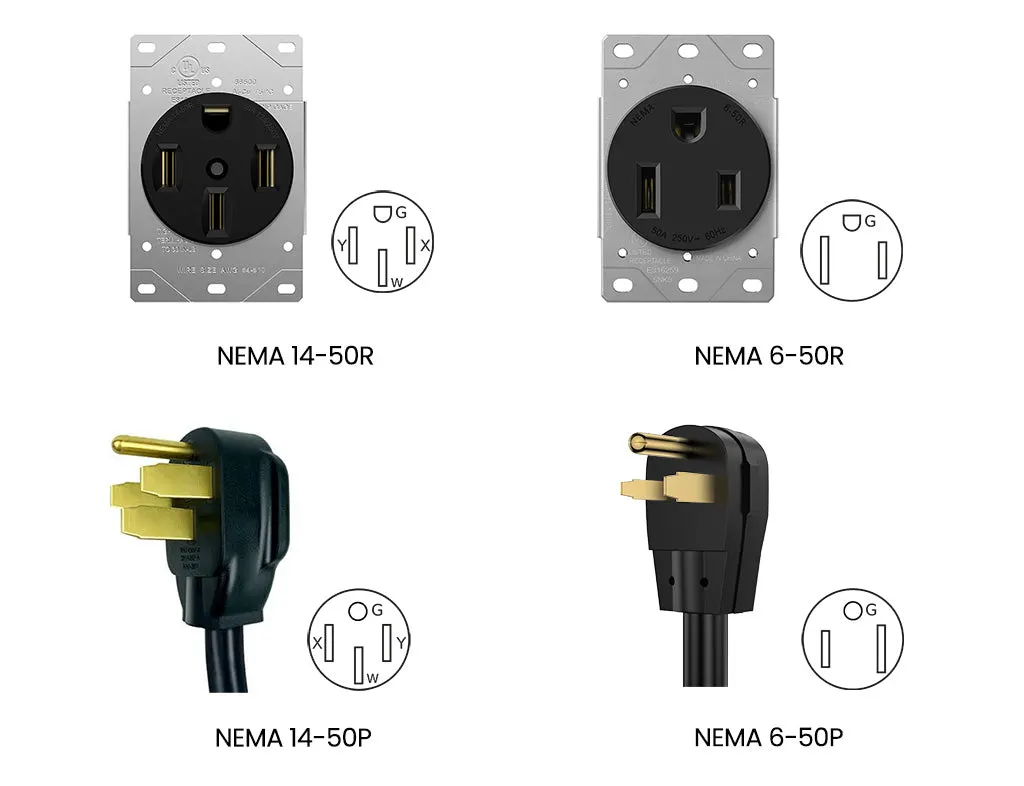

NEMA 6-50 and NEMA 14-50 are power plugs and receptacles commonly used for AC mains electricity in North America and other countries following NEMA standards. NEMA, the National Electrical Manufacturers Association, sets the standards for these plugs and receptacles, identified by the suffix "R" for receptacle or "P" for plug.

Differences between NEMA 6-50 and NEMA 14-50

Both NEMA 14-50 and 6-50 outlets can provide a maximum of 50 amps of power, which is suitable for charging electric vehicles at home.

The main difference between these outlets lies in the inclusion of a neutral prong in the NEMA 14-50 outlet, making it more versatile compared to the NEMA 6-50 outlet.

NEMA 14-50 Outlet

The NEMA 14-50 outlet features four prongs, including two hot wires, a neutral wire, and a ground wire. With the inclusion of the neutral wire, the NEMA 14-50 outlet allows for the use of both 240V and 120V appliances, making it more adaptable for a wider range of devices.

It requires an additional wire for the neutral connection, which may impact installation complexity.

The NEMA 14-50 outlet is commonly found in RV parks, campgrounds, and residential settings. It is frequently utilized for larger appliances such as electric stoves, dryers, and RV hookups due to its higher power capacity and versatility.

NEMA 6-50 Outlet

The NEMA 6-50 outlet consists of three prongs and is designed for applications that require a higher power output. It does not have a neutral prong, making it less versatile compared to the NEMA 14-50 outlet.

The NEMA 6-50 outlet is often found in workshops, garages, and industrial settings. It is commonly used for heavy-duty equipment and appliances that require a higher amperage, such as welders or EV chargers.

Choosing the Right Outlet for EV Charging

When it comes to EV charging, both NEMA 6-50 and NEMA 14-50 outlets can be used for Level 2 charging. They provide the necessary voltage and amperage to charge an electric vehicle at a faster rate compared to standard Level 1 charging.

However, the choice between the two depends on factors such as the existing electrical infrastructure in your home, the availability of dedicated circuits, and the specific requirements of your electric vehicle.

Vehicle Compatibility: Check your EV’s specifications and consult the manufacturer's recommendations to ensure compatibility with the outlet type.

Power Requirements: Evaluate the charging needs of your EV. If you require the ability to charge both 240V and 120V appliances, the NEMA 14-50 outlet may be more suitable.

Existing Infrastructure: Assess your current electrical setup and determine if it can accommodate the specific outlet type you are considering. It's important to consult a qualified electrician for proper installation.

Selecting the appropriate electrical outlet for EV charging is essential to ensure safe and efficient charging. The NEMA 6-50 and NEMA 14-50 outlets are both viable options, with the latter offering greater versatility. Understanding the differences between these outlets and considering factors such as vehicle compatibility and power requirements will help you make an informed decision. Remember to consult a professional electrician for proper installation and to ensure compliance with local electrical codes.

Charging Adapters, A Great Solution

If you find yourself in situations where your EV charger's plug doesn't match the available outlet type, charging adapters offer a practical solution. There are NEMA 14-50P to NEMA 6-50R and NEMA 6-50P to NEMA 14-50R adapters available.

For example, if you have access to NEMA 6-50 outlets, but the charger has a NEMA 14-50 plug, an NEMA 14-50P to NEMA 6-50R Adapter would solve your needs. Using charging adapters can help adapt your charger to the available outlet type, providing flexibility in various charging scenarios. However, always prioritize safety and ensure the adapter is of high quality and compatible with your EV charger. Consult the manufacturer's guidelines for guidance on using adapters with your specific charger model.

By considering these factors, you can confidently choose the right outlet for your EV charging needs and ensure a convenient and reliable charging experience for your electric vehicle.
